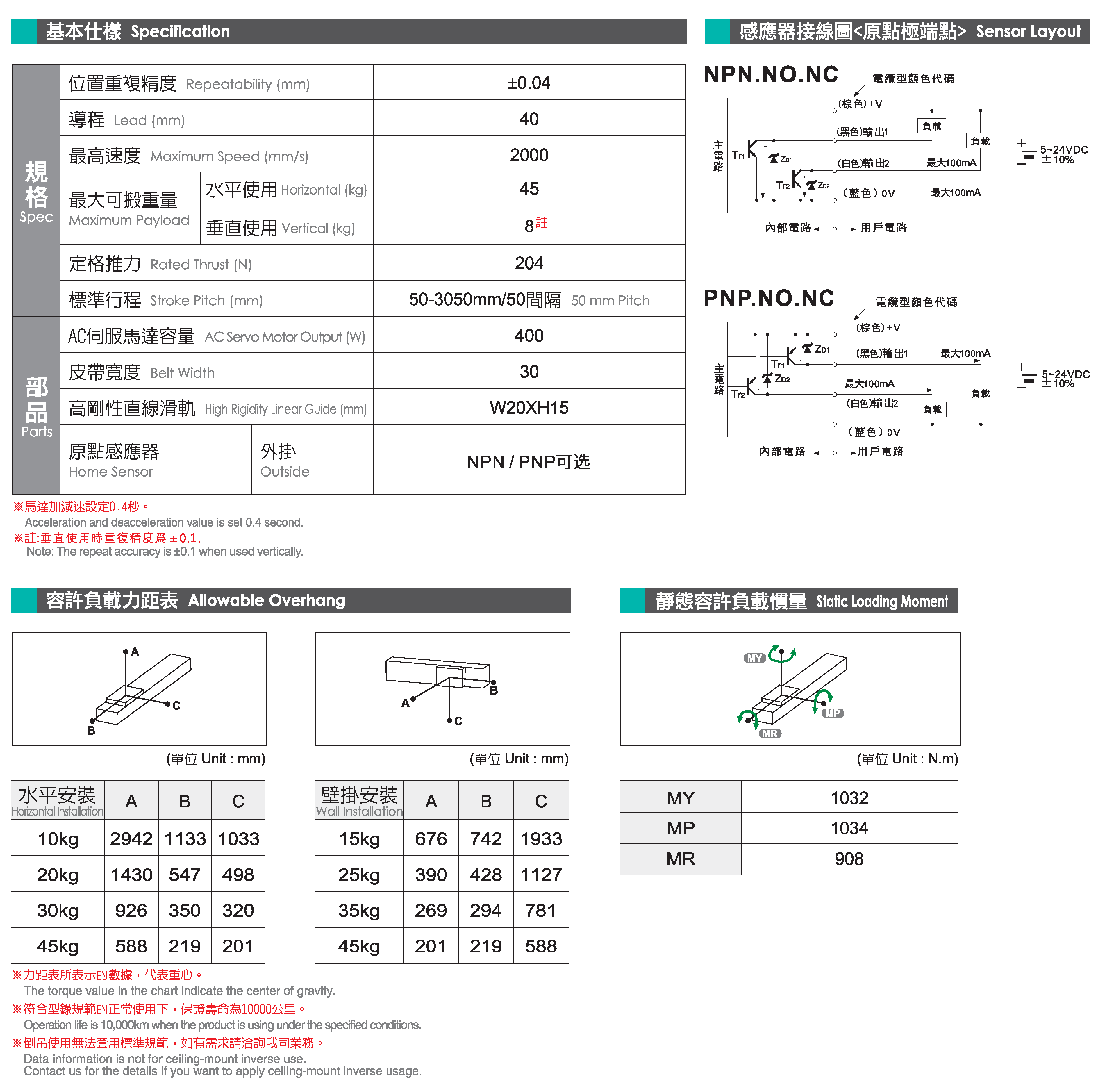

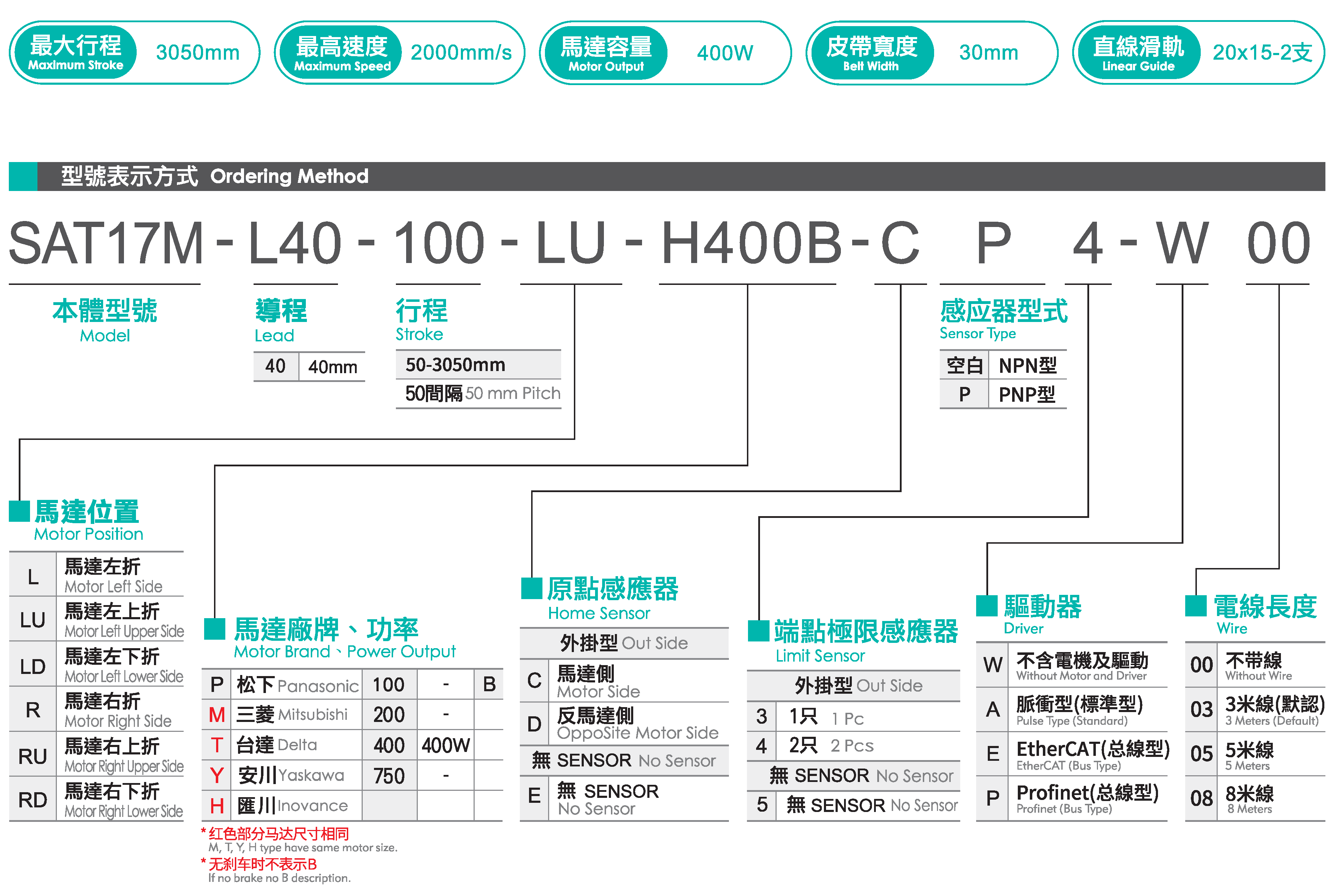

SAT Standard Belt Type
SAT Standard Belt Type
Standard motor: Servo 400W
Repeat accuracy: ±0.04(mm)
Lead: 40(mm)
Maximum speed: 2000(mm/s)
Maximum loadable weight for horizontal use: 45(kg)
Maximum loadable weight for vertical use: 8(kg)
Standard effective stroke: 50~3050(mm)/(50 intervals)
