SAS Standard Ball Screw Type
SAS Standard Ball Screw Type

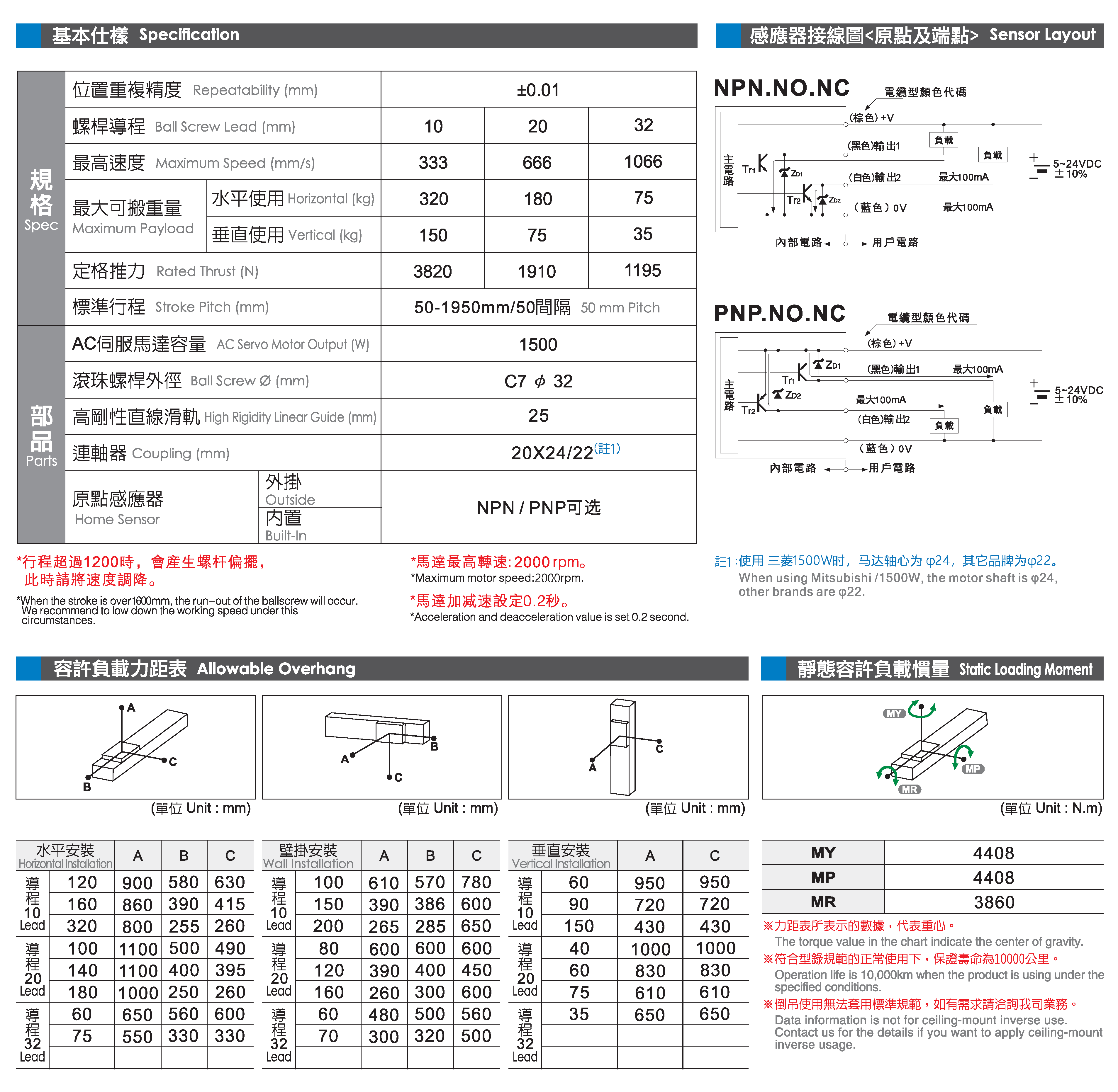

Standard motor: servo 1500W
Repeating accuracy: ± 0.01 (mm)
Screw lead: 10, 20, 32 (mm)
Maximum speed: 1066 (mm/s)
Maximum portable weight for horizontal use: 320 (kg)
Maximum portable weight for vertical use: 150 (kg)
Standard effective stroke: 50~1950 (mm)/(50 interval)
