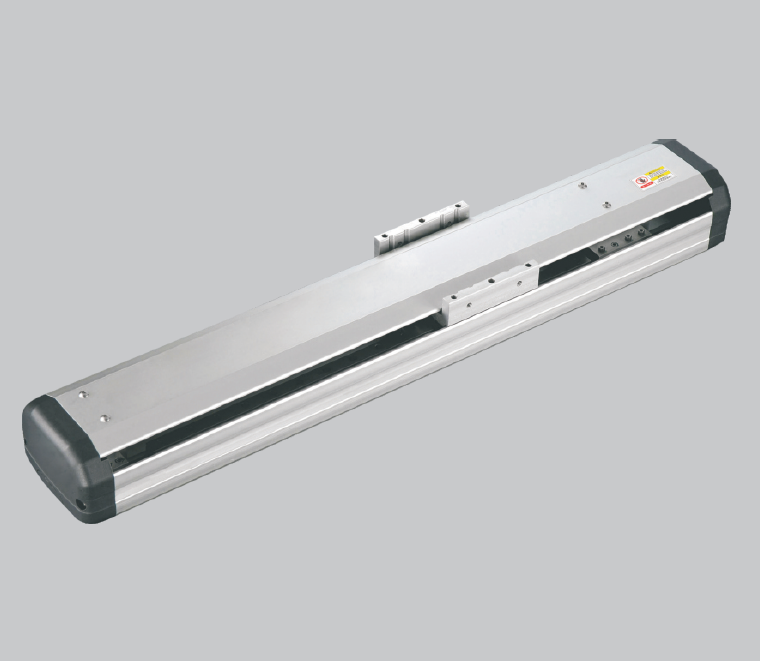

SAS Standard Ball Screw Type
SAS Standard Ball Screw Type

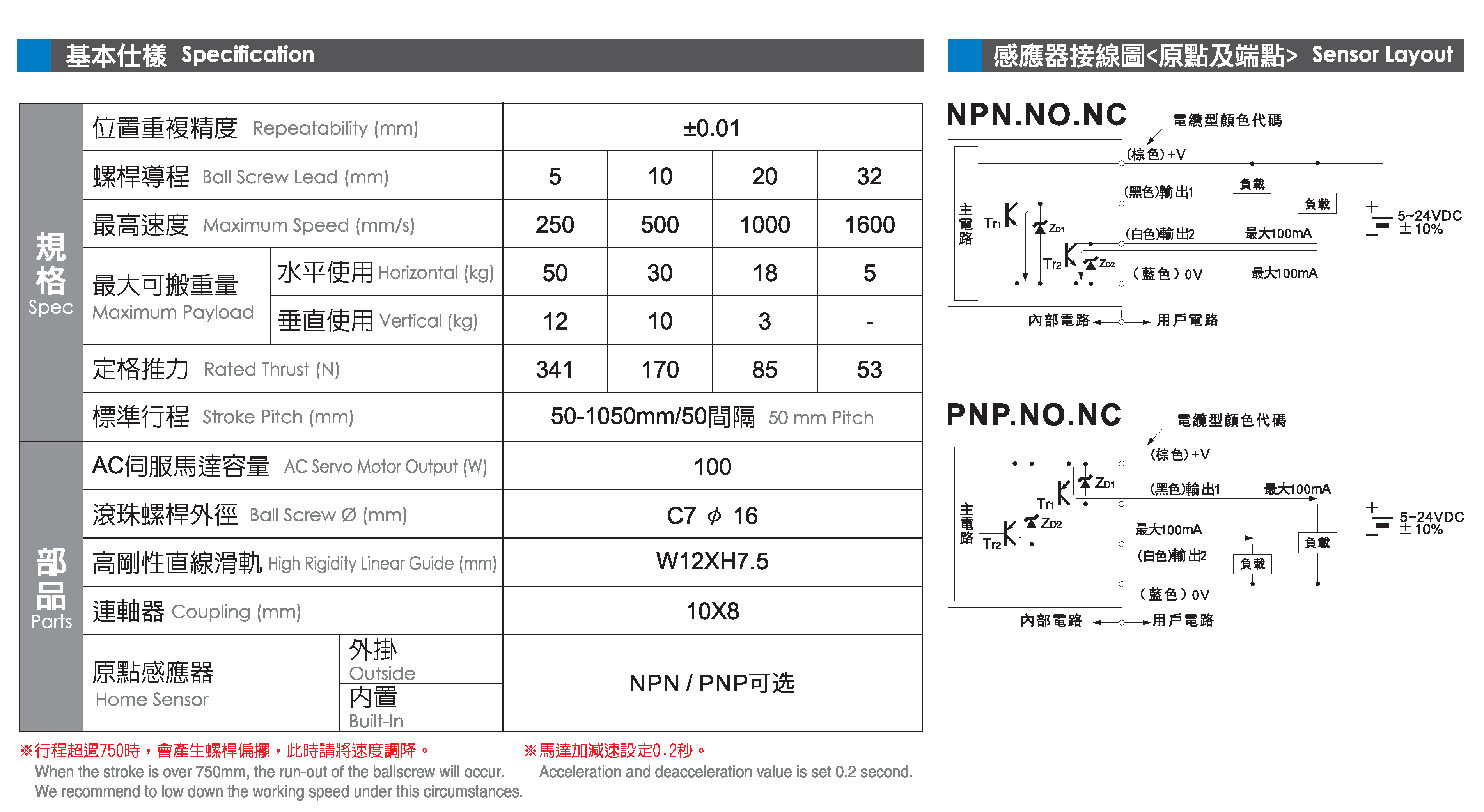

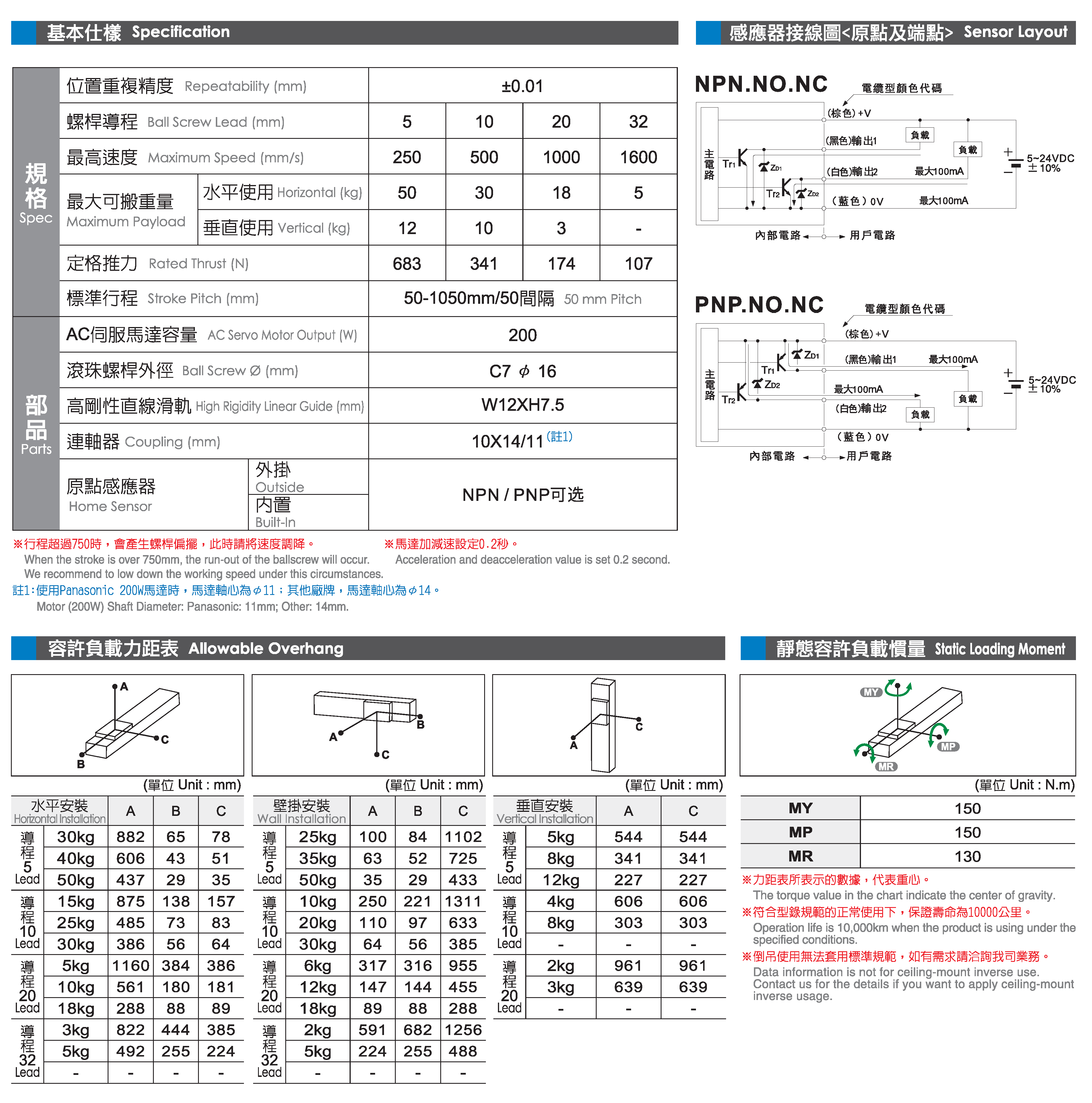

Standard motor: closed-loop stepper 60, servo 100W, 200W
Repeat accuracy: ±0.01(mm)
Screw lead: 5, 10, 20, 32 (mm)
Maximum speed: 1600(mm/s)
Maximum loadable weight for horizontal use: 50(kg)
Maximum loadable weight for vertical use: 12 (kg)
Standard effective stroke: 50~1050(mm)/(50 intervals)
SA seiko (Shenzhen) Co., Ltd. is an industrial automation manufacturer. The company provides electric control solutions to the industries to fulfill the needs of quality linear motion control solutions, precise gripper solution and Servo-press system for the motion, control and manufacturing industries. Our main products are electric grippers, electric actuators, linear actuators, linear motors, electric cylinders, and servo press systems. Our products are widely used in manufacturing 3C products, Electric Motors, Renewable Energy-Batteries, Solar, Semiconductor, Automotive industries.
