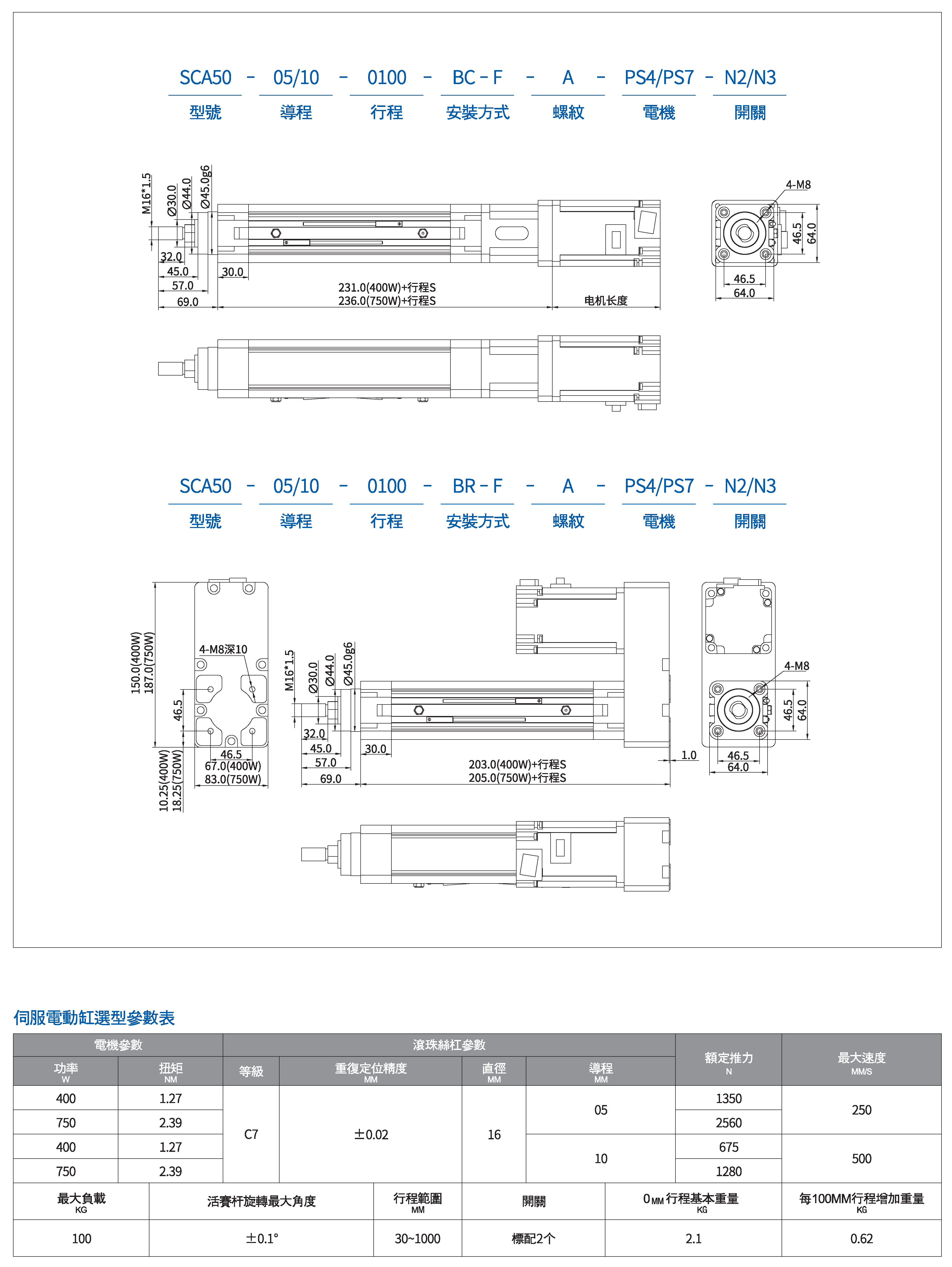

ISO Standard Electric Cylinder SCA Series
ISO Standard Electric Cylinder SCA Series
Standard motor: servo 400W, 750W
Repeat accuracy: ±0.02(mm)
Screw lead: 5, 10(mm)
Maximum speed: 500(mm/s)
Maximum load: 100(kg)
Standard effective stroke: 30~1000(mm)
