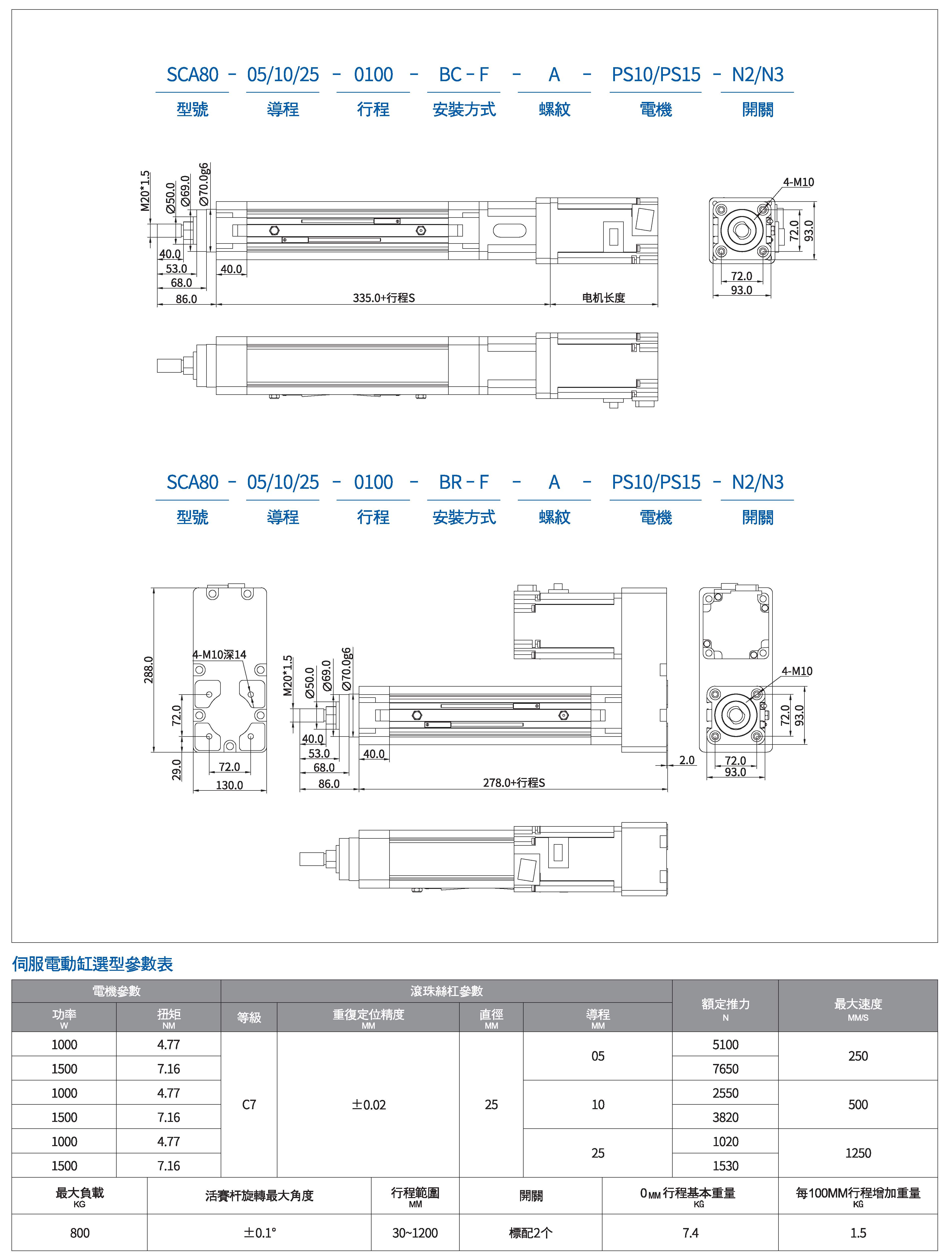

ISO Standard Electric Cylinder SCA Series
ISO Standard Electric Cylinder SCA Series
Standard motor: servo 1000W, 1500W
Repeat accuracy: ±0.02(mm)
Screw lead: 5, 10, 25(mm)
Maximum speed: 1250(mm/s)
Maximum load: 800(kg)
Standard effective stroke: 30~1200(mm)
