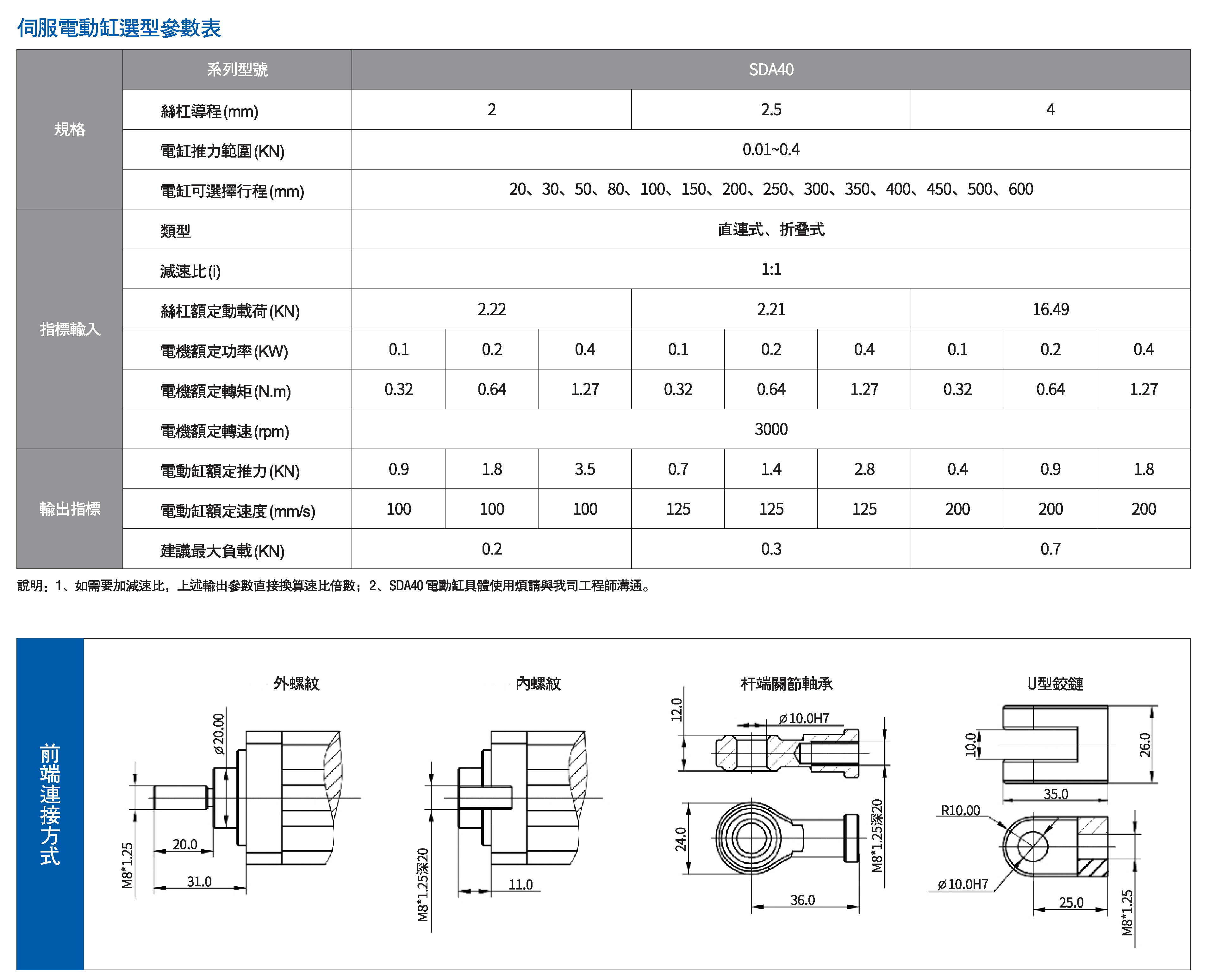

Standard Square Electric Cylinder SDA Series
Standard Square Electric Cylinder SDA Series
Standard motor: servo 100W, 200W, 400W
Repeat accuracy: ±0.02(mm)
Screw lead: 2, 2.5, 4(mm)
Maximum speed: 200(mm/s)
Maximum load: 70(kg)
Standard effective stroke: 20~600(mm)
