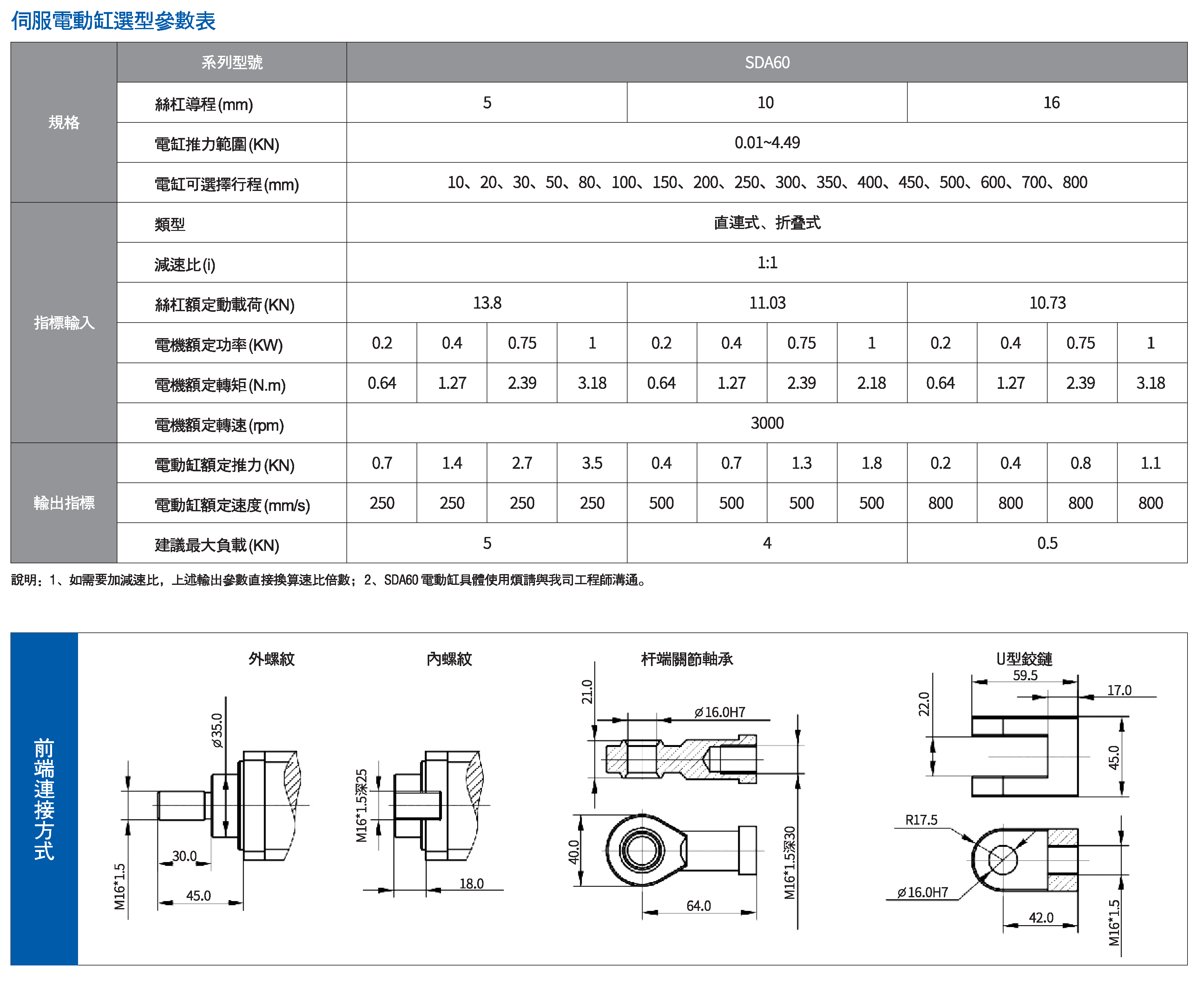

Standard Square Electric Cylinder SDA Series
Standard Square Electric Cylinder SDA Series
Standard motor: servo 200W, 400W, 750W, 1000W
Repeat accuracy: ±0.02(mm)
Screw lead: 5, 10, 16(mm)
Maximum speed: 800(mm/s)
Maximum load: 500(kg)
Standard effective stroke: 10~800(mm)
