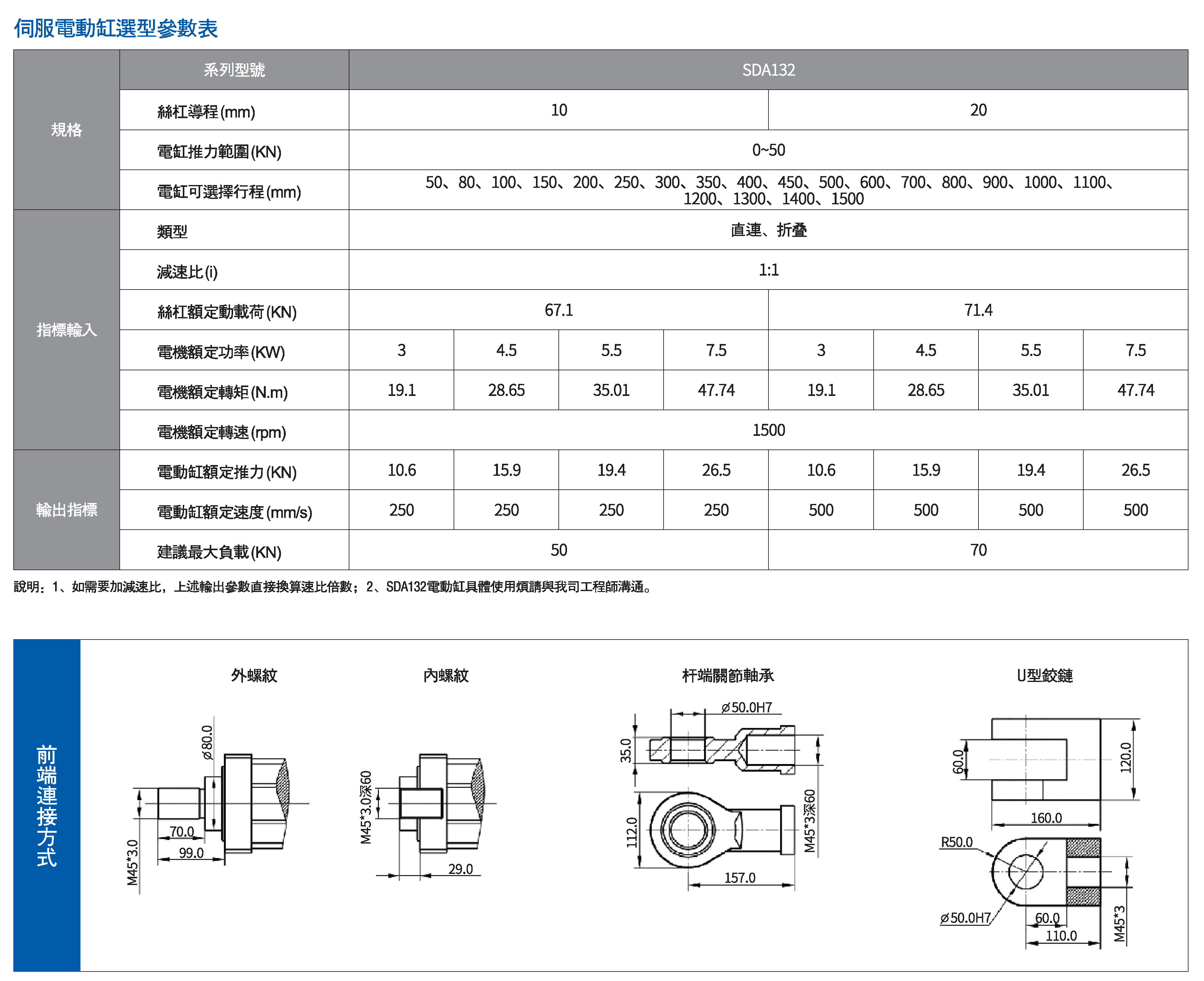

Standard Square Electric Cylinder SDA Series
Standard Square Electric Cylinder SDA Series
Standard motor: servo 3KW, 4.5KW, 5.5KW, 7.5KW
Repeat accuracy: ±0.02(mm)
Screw lead: 10, 20(mm)
Maximum speed: 500(mm/s)
Maximum load: 7000(kg)
Standard effective stroke: 50~1500(mm)
