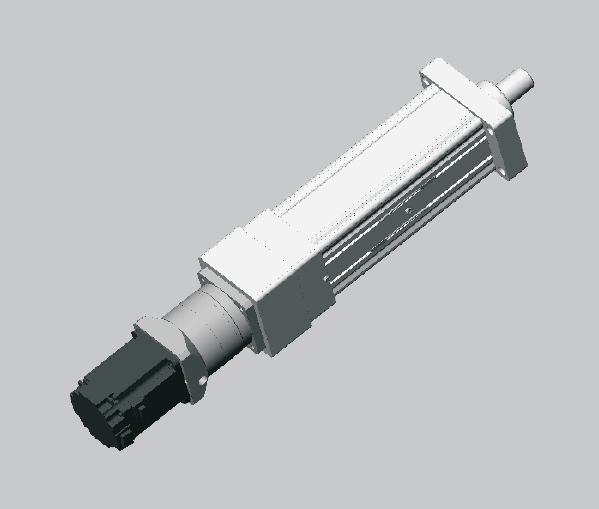

Standard Square Electric Cylinder SDA Series
Standard Square Electric Cylinder SDA Series
Standard motor: servo 1000W, 1500W, 2000W, 3500W
Repeat accuracy: ±0.02(mm)
Screw lead: 5, 10, 20(mm)
Maximum speed: 666(mm/s)
Maximum load: 3000(kg)
Standard effective stroke: 20~1500(mm)
